125cc HIGH-EFFICIENCY MOTOR

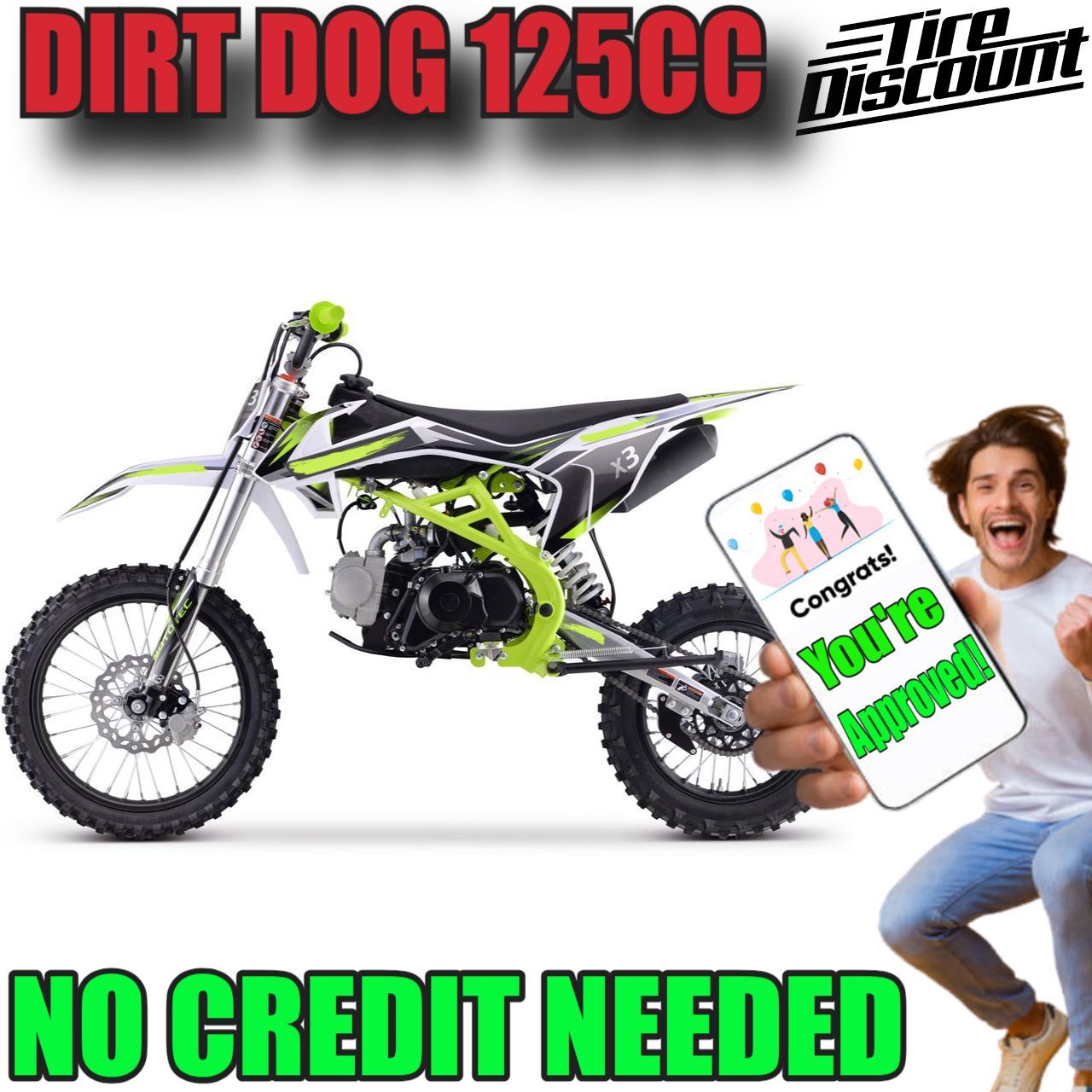

The Dirt Dog 125cc 4-Stroke Dirt Bike - The latest generation of 125cc mini bike engines are faster, torquier, more reliable and even easier to set up and start than ever before. Kick start, improved carburetor and all of the standard safety features, support and reliability that the Dirt Dog provides.

SPECIALLY DESIGNED FOR KIDS

Suitable for both wet and dry conditions. This bike will offer hours of fun in almost any outdoor environment. Built Solid, this bike can handle any off-road riding. A Perimeter Cradle Type Steel Tube Frame, with real outdoor rubber tires separate this bikes from similar products. Responsive acceleration, front telescopic forks, rear mono shock suspension, disk brakes, motocross styling and big bike attitude, makes this the perfect choice. Simple to ride, kick start for light weight and 4 speed manual shifting with clutch lever.

QUALITY BUILT

All Mini Dirt Bikes are not the same. You should be aware of the build quality and parts quality is very important to how much maintenance is required. This Dirt Bike has been specified for quality and reliability, improvements specified over standard Dirt Bikes include – Higher Grade Wheel Bearings - Longer Wearing Tires - Higher Grip Tires - High Quality Suspension for smoother ride - High Grade Starting Components - Chromoly steel frame - Safety and Design - CE and EPA approved.

Anti-Vibration System

This scaled down, gas-powered dirt bike for off-road riding lets young riders seek out their next thrill with an off-roading adventures. It is constructed with superior front hydraulic and back spring suspensions to offer a smoother riding experience, and lets kids easily go over bumps and dips on the road

Control and Safety

We designed our Gas Dirt Bike for it to have both control and safety. This Dirt Bike features large pneumatic knobby tires and twist-grip throttle so your kid can maneuver the bike easily and control the acceleration. Motorcycle safety helmet and gear are not included, but recommended.

Durable & Long-Lasting Design

A Perimeter Cradle Type Steel Tube Frame with authentic dirt bike geometry provides for a solid ride off-road with a max rider weight of 190 lbs.

Specifications:

• Motor: 125cc 4-Stroke Single Cylinder Air Cooled
• Factory Model# K3
• Displacement: 124 ml
• Max Power: 8.3 HP @ 7000 RPM
• Max Torque: 6.63 ft-lb @ 5000 RPM
• Compression: 9.6:1
• Transmission: Manual with Clutch Lever (N-1-2-3-4)
• Engine Oil: SAE 10w/40
• Engine Start: Electric Start & Kick Start (12v/4ah battery)
• Carburetor: PZ26 Jingke
• Drive Train: #428 Chain (14T, 41T Sprockets)
• Fuel Tank: 4.5 Liter
• Wheelbase: 47.24 inches
• Front Tire: 70/100-17 (17 inch)
• Rear Tire: 90/100-14 (14 inch)
• Seat Height: 32 inches
• Max Rider Weight: 190 lbs
• Ground Clearance: 11.81 inches
• Frame: Perimeter Cradle Type Steel Tube
• Front Forks: Non-Adjustable Inverted 45x48x735mm, Travel 140mm, Tube 33mm
• Rear Shock: Hydraulic Coil Spring 310mm, Travel 54mm
• Swing Arm: 490mm Steel
• Rims: 1.6x17, 1.85x14 Cast
• Front Brake: Single Piston, 210mm Disc
• Rear Brake: Single Piston, 190mm Disc
• Dirt Bike Dimensions: 66x29x40 inches
• Dirt Bike Dry Weight: 143 lbs
• Box Size: 63x15x30 inches
• Box Weight: 172 lbs
• Spark Plug: A7TC
• Engine Oil: Summer, Winter
• Top Speed: 47 mph (with adjustable speed limiter)
• Cruising Range: miles per tank
• Recommended Age: 16+
• Max Rider Weight: 190 lbs
• Warranty: 60 days parts replacement
